Picture Windows

Ameristar Windows & Doors designs, manufactures, and installs vinyl picture windows that frame your view and fill rooms with natural light. Because a picture window is a fixed window, the slim frame maximizes glass for a clean, modern look. For picture window replacement, we size, specify vinyl picture windows with the right Low-E and argon options, and install for a tight seal and long service life.

Learn More

Call Us

Rated to 200 °F

The Onyx Collection offers exceptional heat resistance, performing at temperatures up to 200°F. Large vinyl picture windows stay rigid across wide glass spans, outperforming standard vinyl typically rated around 162°F. This helps vinyl windows, especially black vinyl windows, hold their shape and support energy-efficient windows performance in hot climates.

Engineered for Stability

The Onyx Collection is engineered to resist window warping. Intense heat, direct sun, and moisture can shift lesser frames, but this onyx profile maintains dimensional stability so the frame stays square and glazing seals remain uniform. The result is consistent sightlines and reliable thermal performance for vinyl windows and black vinyl windows in high-sun locations.

Long-Lasting Deep Color

The Onyx Collection preserves its deep onyx color under UV exposure, temperature swings, and changing conditions. Its distinct onyx shade pairs well with many aluminum windows and doors, creating a modern look beyond traditional white vinyl. The Onyx Collection profile meets ASTM International and AAMA standards. The series also meets the latest NFRC Energy Star 7.0 requirements when configured with qualifying glass, the most rigorous energy efficiency standard in the U.S., supporting strong thermal performance and long-term comfort.

Frequently Asked Questions

What is a picture window?

A picture window does not open. Because it is fixed, it can be made larger than operable styles and is often used for floor-to-ceiling applications. Many homes pair a large picture window with operable units, like double hung or casement windows, on each side to add airflow without losing the view.

Are picture windows more energy efficient?

Yes. Fixed windows have fewer points for air leakage, which helps efficiency. For even better results, choose Low-E coated glass, argon gas fill, and the right pane configuration for your climate. Our team can recommend options that meet Energy Star criteria.

Where do picture windows work best?

Use them where you want light and a clear view: living rooms, stairwells, great rooms, and high walls where a window is hard to reach. They also work above other windows or doors as a transom to add height and daylight.

How much does a picture window cost?

Costs vary by size, frame material, glass package, and installation conditions. Fixed units can be more budget friendly than comparable operable windows, but exact pricing requires measurements and specs. Request a free quote and we’ll provide a detailed proposal.

What’s the difference between a picture window and a bay window?

A bay window is a combination unit that usually centers a picture window between two operable windows. The picture window provides the view; the side units add ventilation and dimension.

What is another name for a casement window?

Casement and awning windows are often called crank windows because both styles open with a crank. The difference: casements hinge on the side and open outward; awnings hinge at the top and open from the bottom.

GLASS

Creating your own insulating glass unit (IGU) by following three simple steps

Step 1: Type of Glass

Annealed |Tempered | Laminated

Annealed Glass

Clear, standard glass with excellent clarity and value for everyday applications.

Tempered Glass

Heat-treated for additional strength and safety. If broken, it crumbles into small pieces to help reduce injury risk.

Laminated Glass

Two sheets bonded with a safety interlayer. Enhances security, improves sound control, helps block UV, and holds together on impact.

Step 2: Dual-pane / Triple-Pane

Dual-Pane IGU

Two panes separated by a warm-edge spacer with argon gas between the panes. A balanced choice for clear views, insulation, and cost.

Dual-Pane Glass Diagram with LoE 366 and Lami. Glass

Triplepane Glass Diagram with Two LoE 366 Glass

Triple-Pane IGU

Three panes with two spacers and argon gas in both chambers. Higher insulation and better sound control. Available on select sizes.

Step 3: Energy-Efficient Coated Glass

LoE 366

Triple layer coating glass for outside solar control. Helps manage heat gain while keeping interiors bright.

LoE i89

Four layer coating clear glass for room-side efficiency. Enhances insulation and supports maximum energy savings.

Step 4: Color & Pattern Options

Choose from a range of pattern glass designs to add privacy and character to bathrooms, entry areas, and other spaces. These options bring dimension to windows or doors while maintaining natural light.

Matte

Bamboo Glass

Glue Chip

Obscure

Grey

Bronze

Reeded

Rain

Delta Frost

GRID

Grid Between the Glasses

The grille sits between the panes, so you get the look you want and an easy-to-clean glass surface with no exterior bars to wipe around. *We also offer Simulated Divided Lite (SDL) grids for specific window and door styles. SDL options require additional lead time and cost. Please contact our sales team for details.

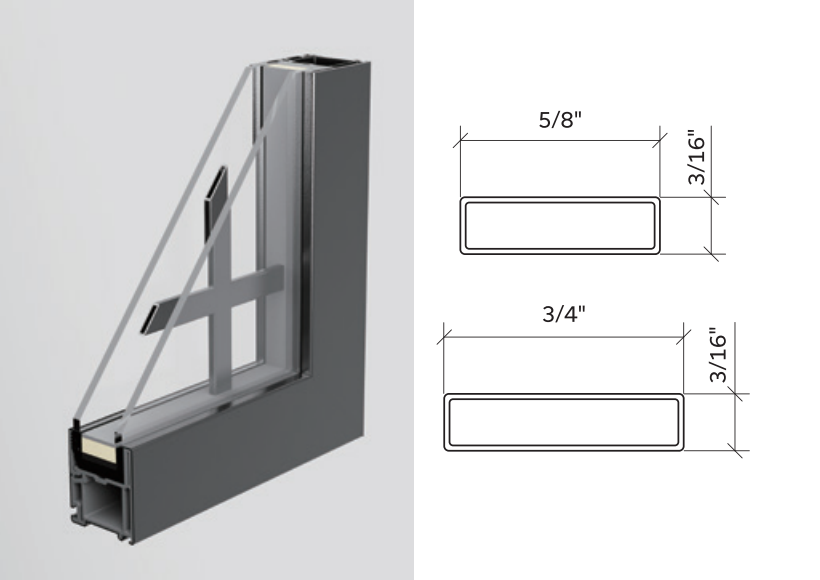

Flat Grids Size: 5/8, ¾

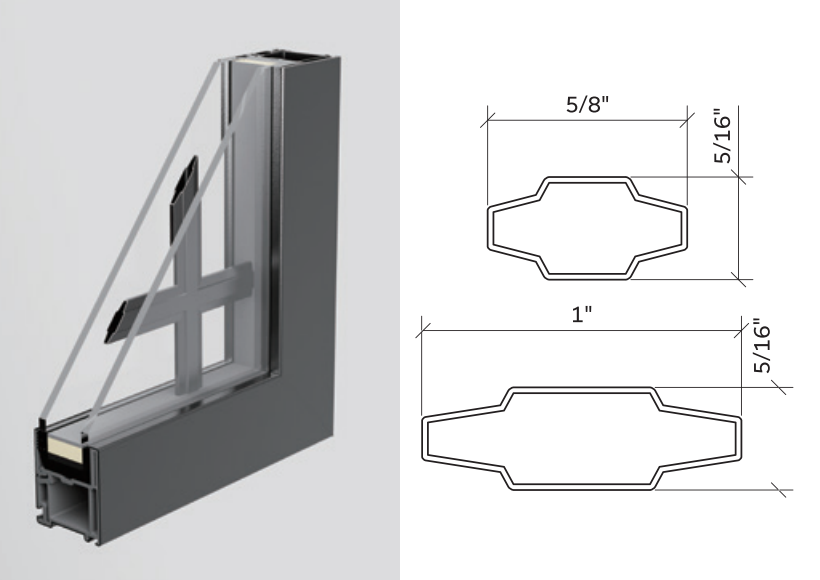

Sculptured Grid Size: 5/8, 1

Grid Patterns

Available patterns include Marginal, Double Prairie, Colonial, and Marginal MG18.

*Grid patterns allow wide customization but are limited to vertical and horizontal orientations. *Geometric picture windows have specific grid pattern options. Please contact our sales team for more information.
