French Swing Door
Aluminum French swing doors combine a clean, contemporary frame with expansive glass to brighten interiors and elevate curb appeal. Panels can swing in or out and close against a full compression seal for a firm, weather-tight fit. Thermally broken aluminum improves energy performance, while durable powder-coat or anodized finishes hold color in sun and coastal conditions. Configure single or double doors with optional sidelites and transoms to match your opening and design.
Key Benefits
- 20 micron anodizing thickness delivers a long-lasting finish with consistent color across panels and frame.
- Mechanically fastened frame and panels add rigidity for dependable structural integrity.
- 4-1/2″ jamb width accommodates robust hardware and clean, architectural sightlines.
- Reinforcement in larger size doors maintains stability on oversize configurations and high-use openings.
- Stainless steel bearing hinge assemblies provide exceptionally smooth operation and are engineered to support heavier door panels.
- FER rated hardware is tested for Forced Entry Resistance for added security.
- Argon gas filled chambers in the IGU help reduce heat transfer for better comfort.
- Optional SuperSpacer with secondary butyl seal strengthens the IG seal for long-term performance.
Handles & Wheel Rollers
Aluminum series doors feature outstanding aluminum construction and premium hardware.
- High-grade aluminum material
- High-performance hinges for smooth operation on panels with our heaviest glass packages
- Contemporary, ergonomic handle for smooth action and a modern look
- Corrosive-resistant locking system with strong forced-entry resistance
- Hardware colors match frame

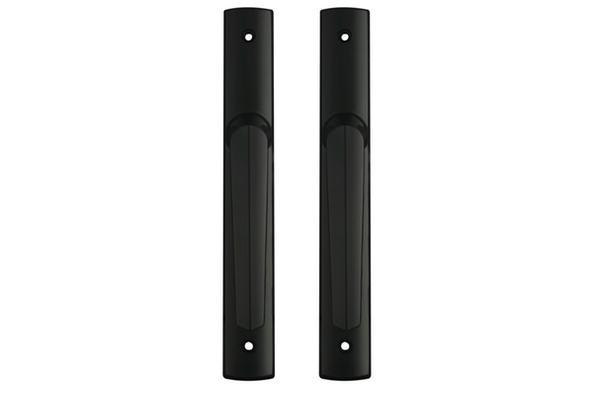

Lockwood Optimum Mortise handle
Optional Key
Inside view of Mortise Locking System
Concealed Continuous Hinge
Heavy duty continuous hinges made of high-strength aluminum for added security, smooth operation, and long service life.
Continuous hinge
Continuous hinge on door
Color
For a unique look, our aluminum windows and doors are available in several architectural colors to complement your home. Actual color may vary from on-screen representation.
- High performance anodization
- corrosion resistance
- and high heat tolerance for long-lasting appearance.
Bronze Aluminum
Amond
TriplePane Glass
Our triple pane insulated glass unit consists of three layers of glass sealed with Duralite spacers. Inner glass chambers are filled with argon gas.
- 2 LoE3 glass panes for maximum energy savings
- 2 inner chambers filled with argon gas
- Increased air space improves sound reduction
- Patio door IGUs feature thicker glass
Triple pane is among the best choices for an energy efficient home.
Durapane Laminated Glass
DuraPane laminated glass uses a plastic safety interlayer between two sheets of glass on one pane of the insulated glass unit (similar to automotive windshields).
- Impact resistant glass panels
- Excellent sound reduction; STC ratings with DuraPane can reach 34–36 (varies by size and options)
Tint Options
Glass Tint & Texture
Pattern and privacy glass options add character while maintaining daylight. Bronze and grey tints are available, with additional textures on request.
Multiple-sliding and Pocket Door Styles
French doors come in multiple configurations. Codes read left to right from the exterior view:
- SWO = swings out • SWI = swing in
- L = left • R = right
- S = sidelite • SX = operating sidelite • SF = fixed sidelite
- T = transom window
Example: SWO – XL indicates a swing-out door that is operational to the left.
- ADA compliance: 10″ bottom rail and 1/2″ sill height
- Beveled, multi-chambered extruded aluminum featuring thermal breaks
- Full double weather stripping helps prevent elements infiltration
- See additional layout options in the Styles section above.
